Colors in LabMaestro
Color Picker
As of version 1.10, there is a new widget that allows users to select colors. When specifying solid-type colors, users will have more freedom in how they specify the desired color.

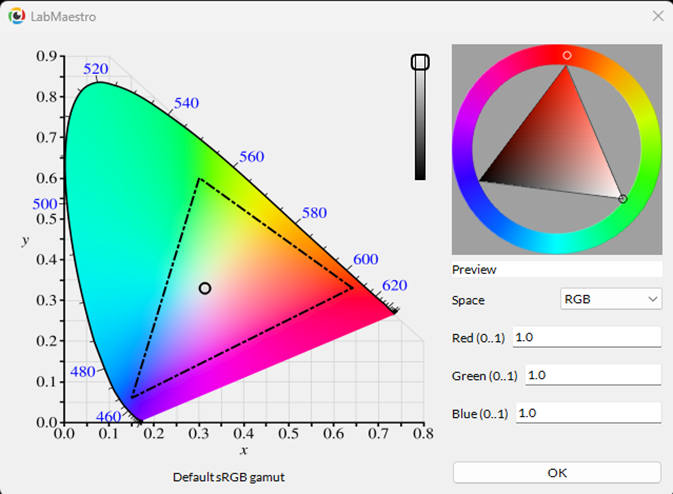

The new color picker interface in LM 1.10
On the left, you can see the position of the color point on the default sRGB gamut through its x and y coordinates. In the top right, a luminance slider as well as a preview of the color point in relation to saturation and luminance are available. In the bottom right of the window, you can manually specify the numerical values of the desired color point in a variety of color spaces.
Supported Color Spaces
We support the following color spaces:
*Default* RGB, as specified to define color values
LMS HPE (Long, medium, short) using the Hunt-Pointer-Estevez transformation matrix (HPE) https://en.wikipedia.org/wiki/LMS_color_space#Hunt,_RLAB
LMS CAT02 (Long, medium, short) using the CAT02 transformation Matrix https://en.wikipedia.org/wiki/CIECAM02#CAT02
CIE XYZ https://en.wikipedia.org/wiki/CIE_1931_color_space#CIE_XYZ_color_space
Lxy (CIE xyY) https://en.wikipedia.org/wiki/CIE_1931_color_space#CIE_xyY_color_space
LuvP (CIELUV with u’ and v’) https://en.wikipedia.org/wiki/CIELUV
LuvS (CIELUV with u* and v*) https://en.wikipedia.org/wiki/CIELUV
Lab (CIELAB) https://en.wikipedia.org/wiki/CIELAB_color_space
