Analog Input (ADC) and Waveform Generator

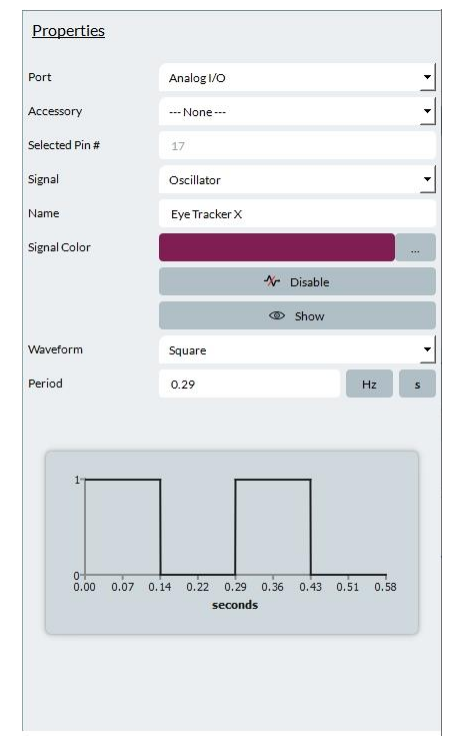

For the analog input, the options are similar to the digital inputs. You can name your signals and generate a waveform that can simulate an external analog equipment connected to your VPixx device. As seen below, you have access to different waveform types as well as their period. The available waveforms are currently a square waveform, a sinusoidal waveform, a square-saw waveform and a triangle waveform. The period can also be modified in hertz or seconds. The disable/enable button allows you to start the signal only when needed, otherwise it will run until the Start/Stop signal button is pressed.

You can also use the Show/Hide button to display it easily in the signal viewer.
