Digital Outputs

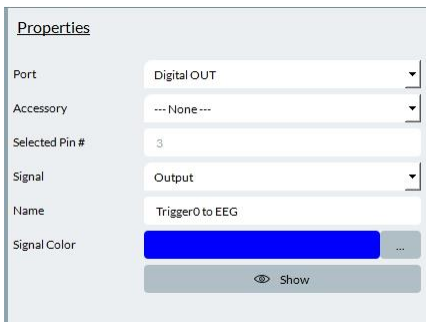

Digital outputs can be controlled via your code, as if you were triggering external equipment. In the UI, you can name your signal to represent its purpose. For example, you could name a trigger sent to an EEG Recorder “EEG Trig 0”.

The Show/Hide button allows you to control if you see this digital output in the signal viewer, and the color you see here would be its color representation.

Remember that a VPixx device digital output can be controlled in multiple ways:

• Set Values

• Schedule

• Pixel Mode

Pixel Mode will always have precedence on the other options, then the schedule, and lastly the values set manually. The set values can control all 24 outputs while the schedule can only control the first 16.
