Recordings and Built-In Data Visualization
Users can preview their recorded data directly within LabMaestro before they export data and process it with other software. This streamlines the experiment design and data collection processes by providing immediate feedback.
Thank you for your interest in LabMaestro! The page you are trying to access is under development. We are working on comprehensive documentation to help you make the most of our software. If you require any help, please feel free to contact us via email at support@vpixx.com.
To view all the recorded data, navigate to the Project Panel and expand the Recordings header.
The recorded data are sorted first by participant ID, followed by the date and time stamp of the start of the recording sessions. The date and time stamp of the recording sessions are in the following format: YYYYMMDDHHMMSS.
To see the stored recordings, expand a session header.
Screenshot from LabMaestro Public Beta 1.6.0
The data recorded from the timelines driven by Methodsare stored as *.mtd files within LabMaestro.
The TRACKPixx data recorded withStart Recording Tracker and Stop Recording Tracker are stored as *.trk files.
By clicking on the recorded data file, a data visualization tab with its default visualization will open.

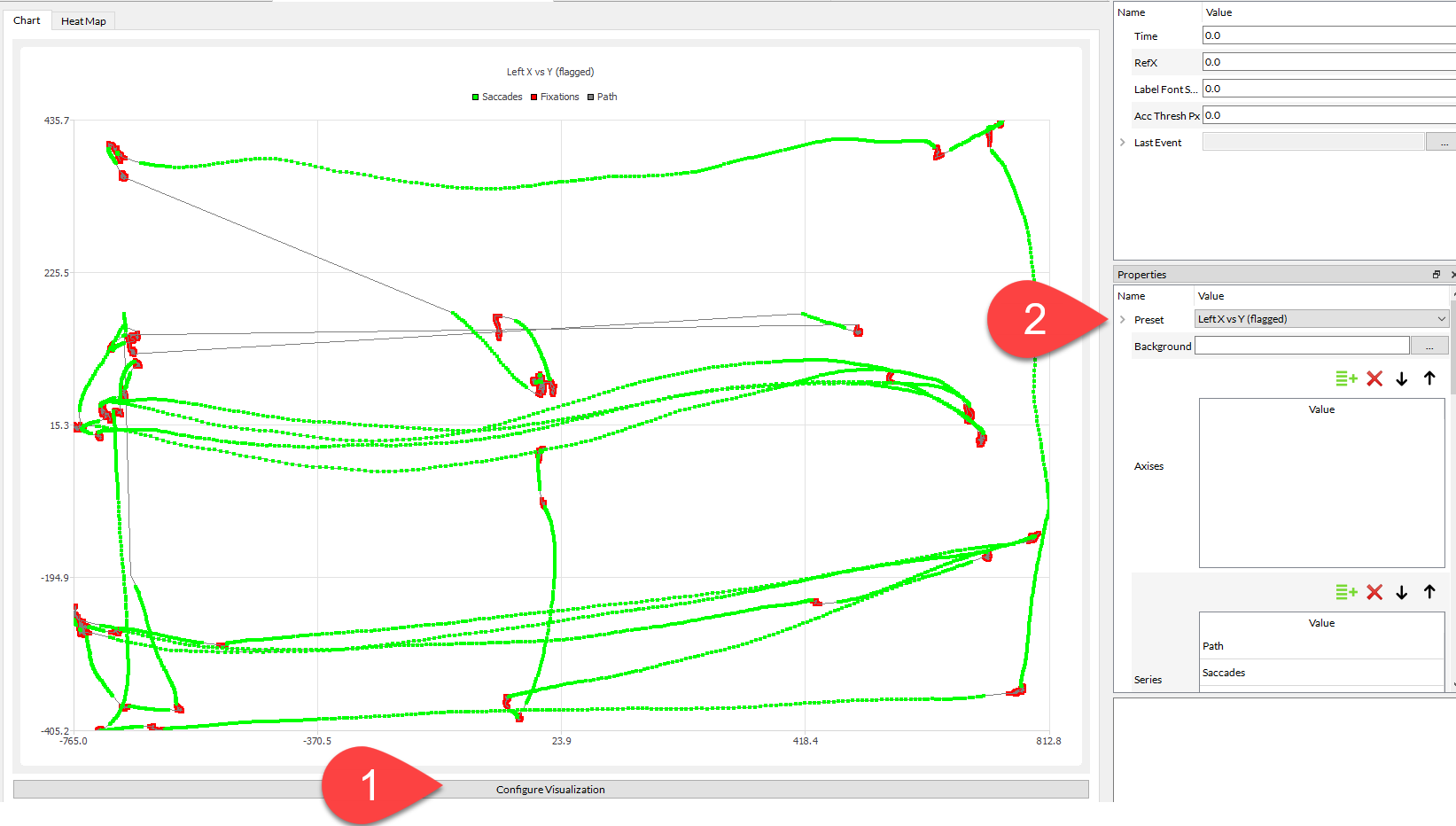

Screenshot from LabMaestro Public Beta 1.6.0
We designed the data visualization tool to be highly configurable, and you can click on the (1) Configure Visualization button to explore the available (2) presets.
Once you have collected enough data and are ready to analyze it, visit the Data Exportpage.
