Quad12x: 1440Hz greyscale, half resolution

In Quad12x mode, also known as 1440Hz mode, video is passed from the GPU to the display with a resolution of 1920 x 1080 p @ 120Hz.

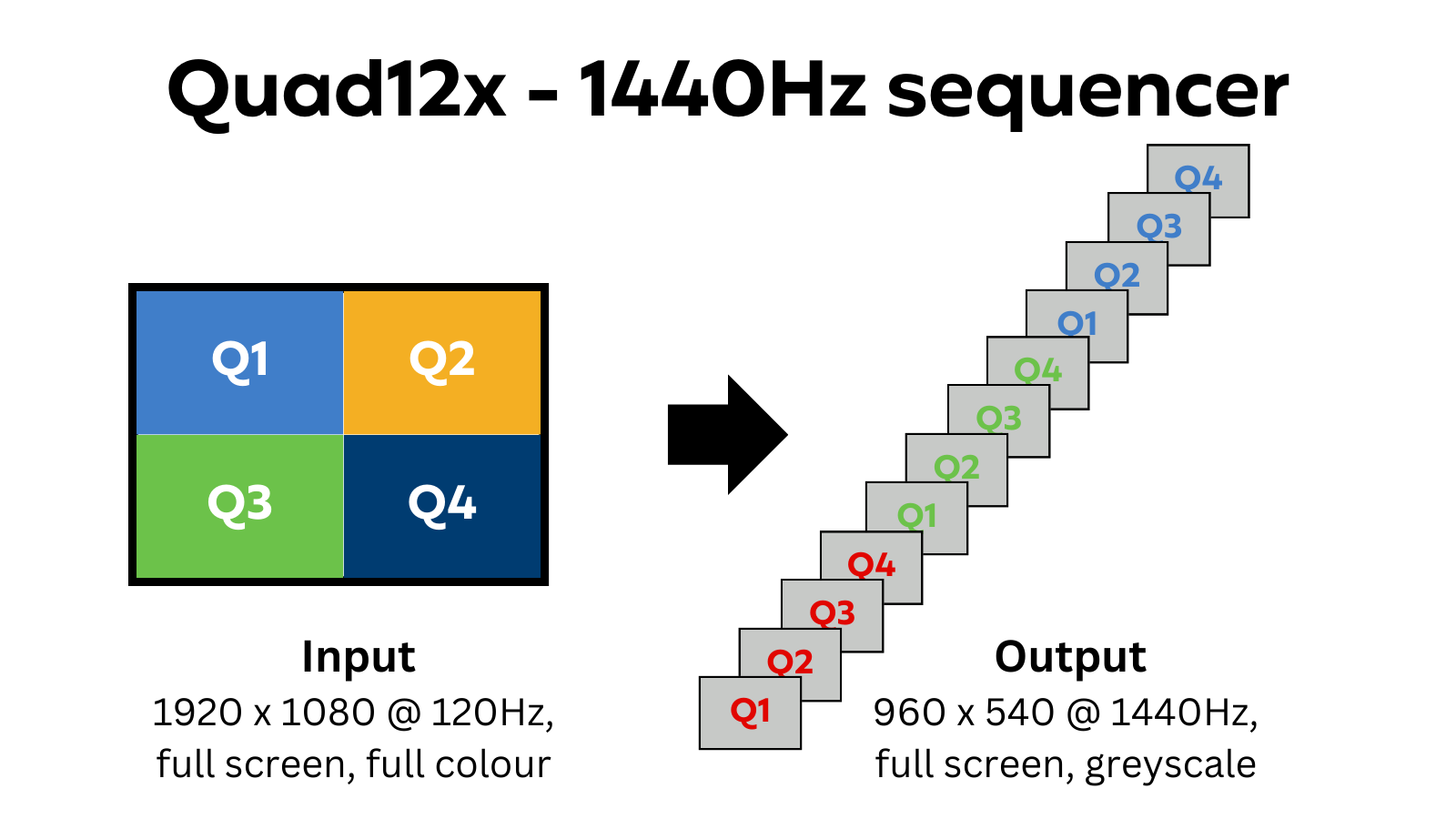

The custom sequencer converts the R, G and B colour planes into three greyscale images, then divides those full resolution greyscale images into four 960 x 540 “quadrants.” The twelve subsequent greyscale quadrants are displayed sequentially, yielding a final refreshrate of 1440Hz.

All quadrants are displayed full-screen, greyscale.

Links to examples of Quad12x from our demo library can be found below.

MATLAB

• Drawing dots at 1440 Hz

• Drawing dots at 1440 Hz with blending

• Drawing dots at 1440 Hz with automatic quadrant assignment

Python

• Coming soon!
