Drag & Drop Regions

As of LabMaestro V1.10, regions can now be dragged and dropped directly on the timeline preview to the desired position.

To do so, select a region component from the component library and drag it to the desired position on the Timeline workspace.

You can also drag a region component into a specific epoch in the Timeline window. The region component will appear in the center of the Timeline workspace for this epoch.

Once placed, a region can only be moved by changing the x and y positions in the region properties.

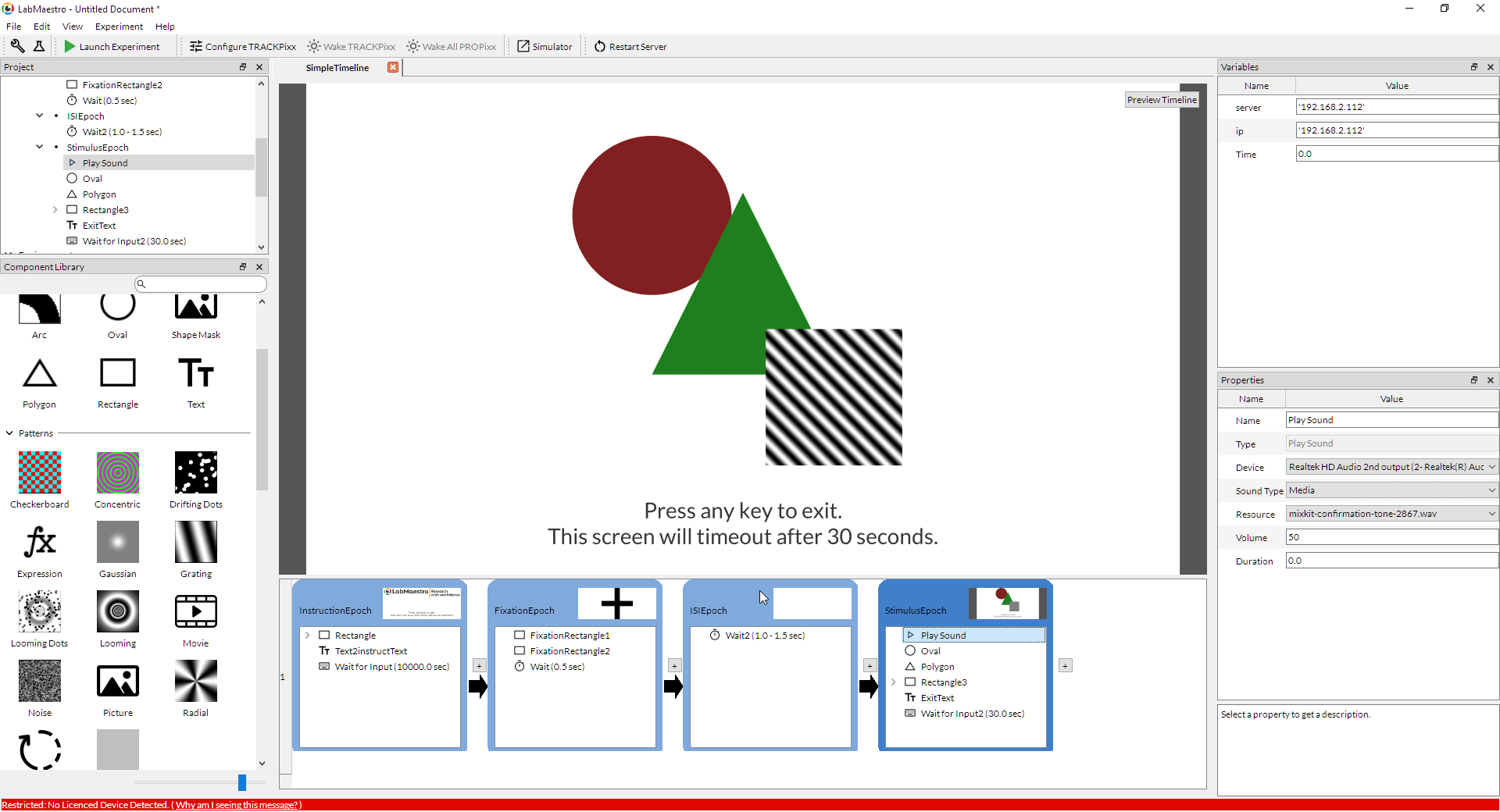

LabMaestro drag & drop feature for regions

You can also place patterns within regions by dragging them on top of a desired region in the Timeline workspace. If you place a pattern in an area in which there are no regions, you will be prompted to select a region component type. The region component will be added at the same time as your pattern.

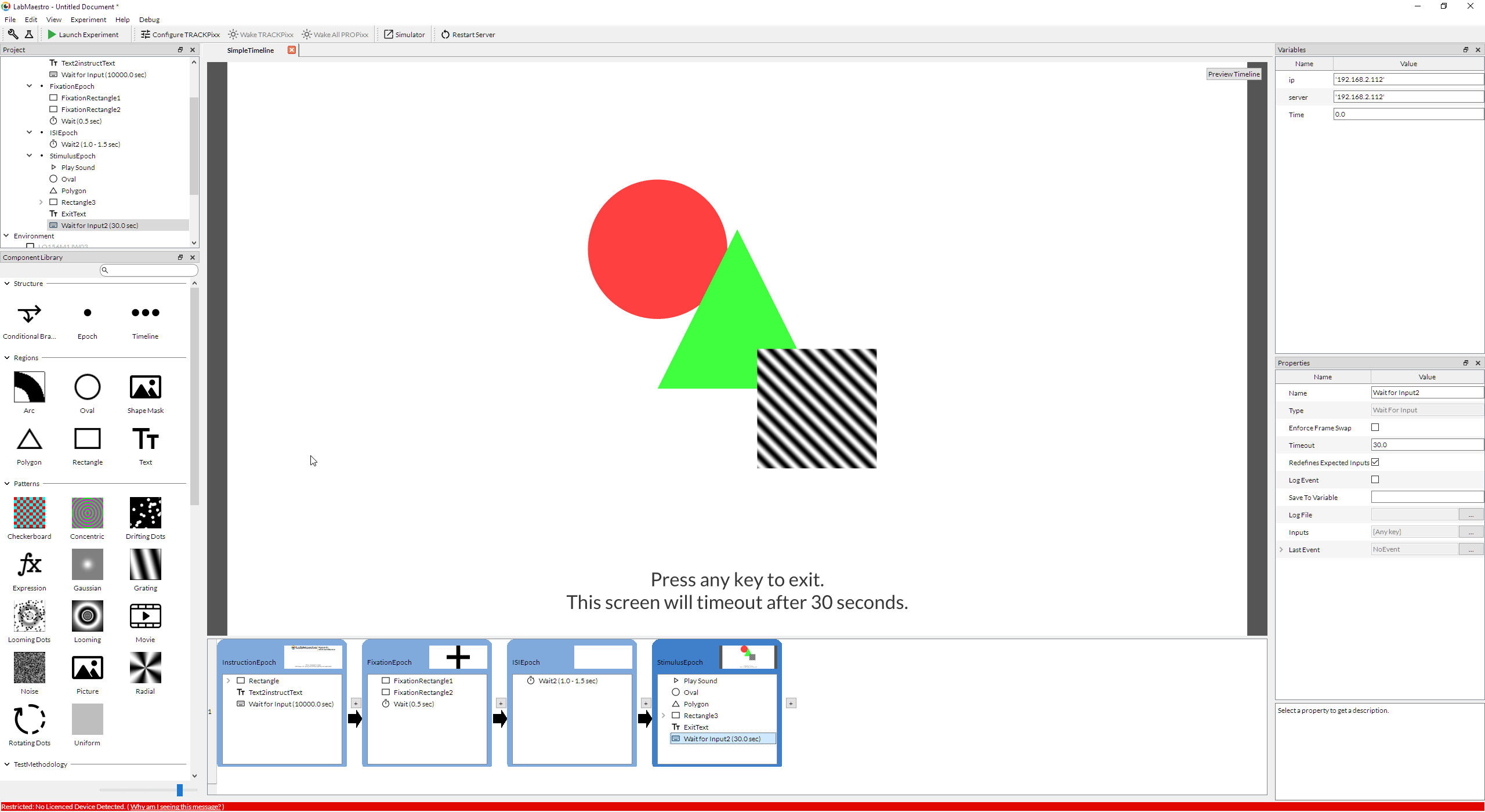

LabMaestro drag & drop feature for patterns
